Brand: Jaerb

Part Number: Jaerb0zk9ecawqs

Details: 1. Lightweight and portable, the electromagnetic induction spiral coil specializes in electromagnetic induction phenomena, which is convenient to carry and use.
2. Easy to use, it can be used with bar magnets, ammeters, sliding varistors and other instruments.
3. Physics laboratory equipment auxiliary tools make physics experiment learning more efficient.
4. Rugged and durable, constructed of enameled copper, wear resistant, not easy to be damaged, and long service life.

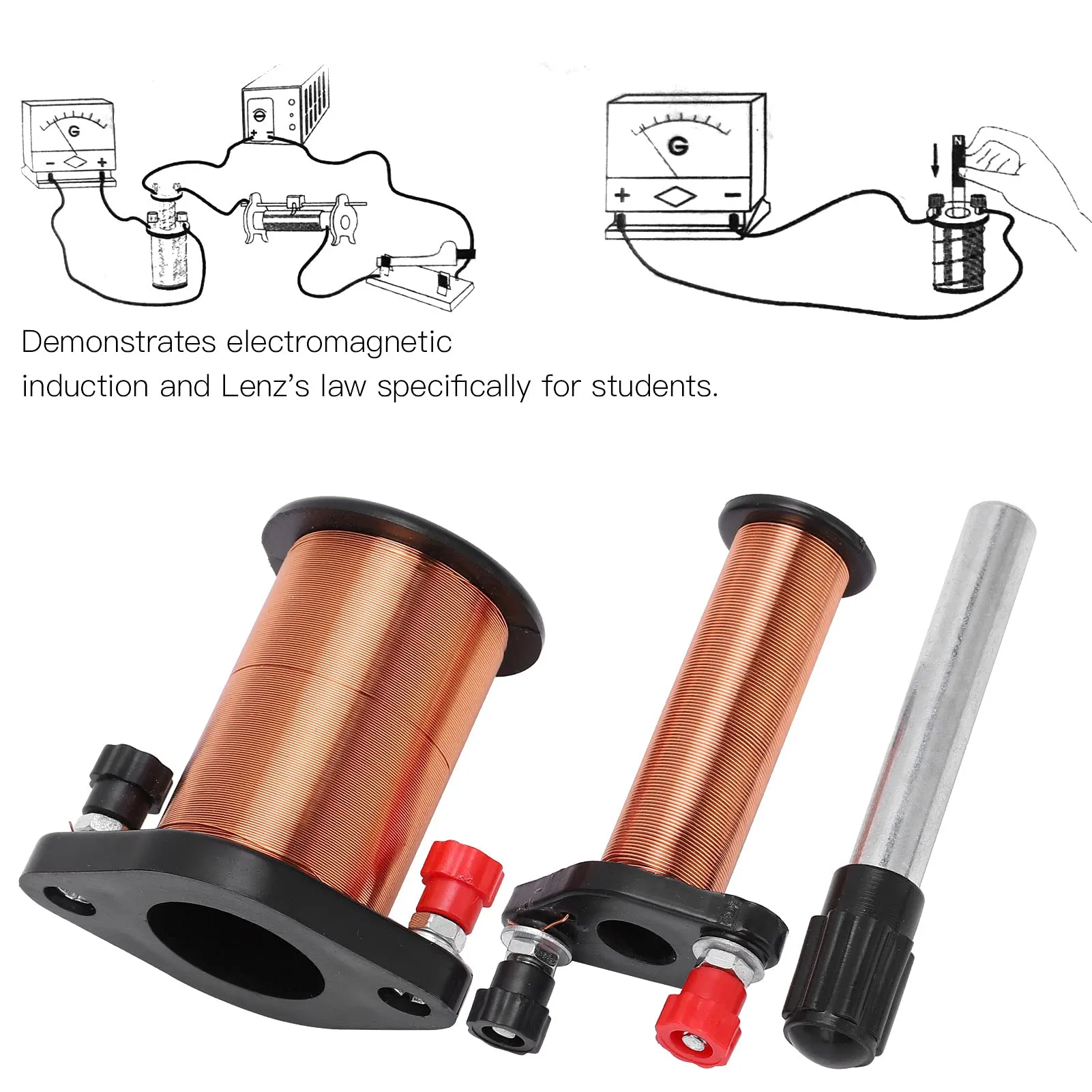

5. It is designed to demonstrate electromagnetic induction and verify Lenz's law for students. It is an ideal choice for physics teaching.

Spec:

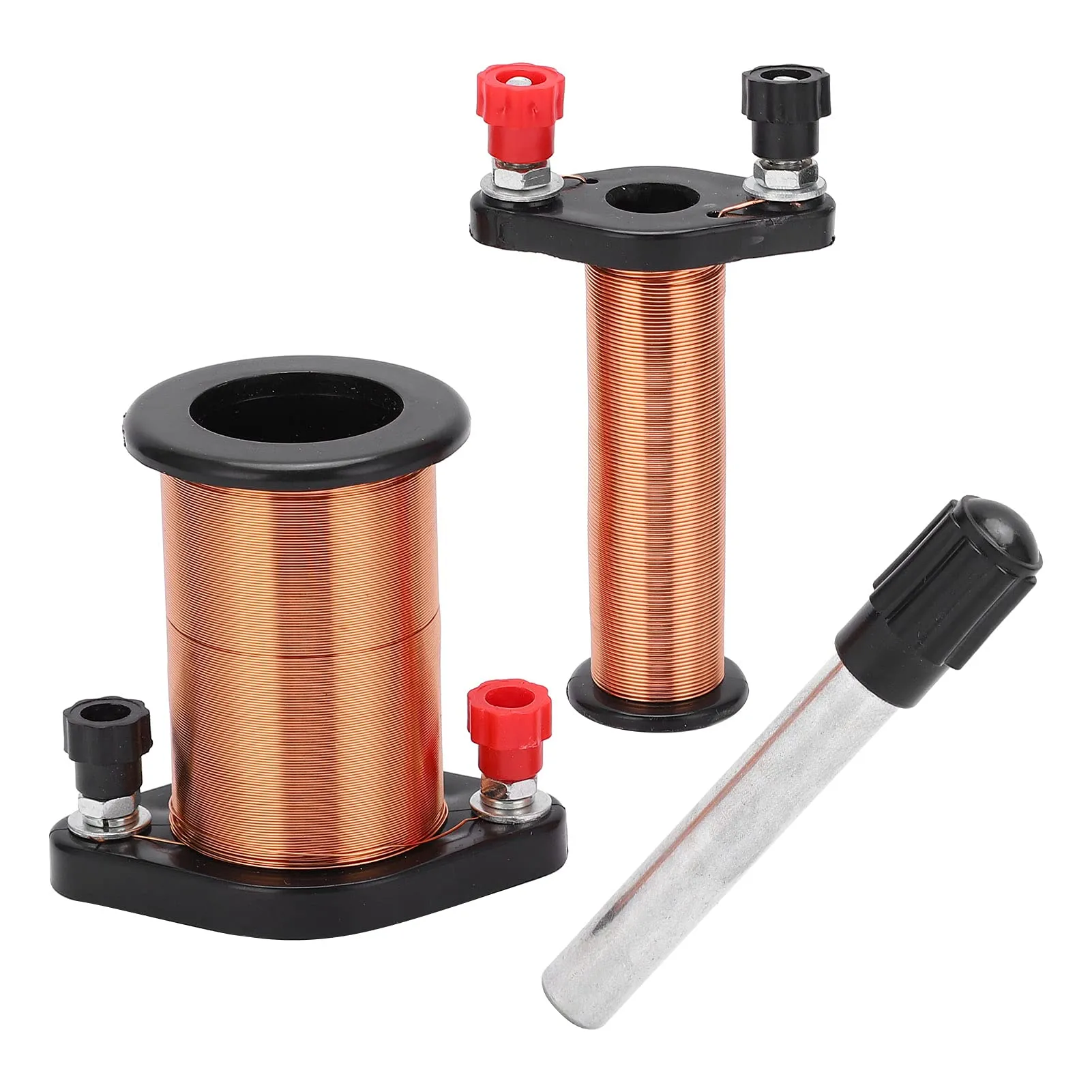

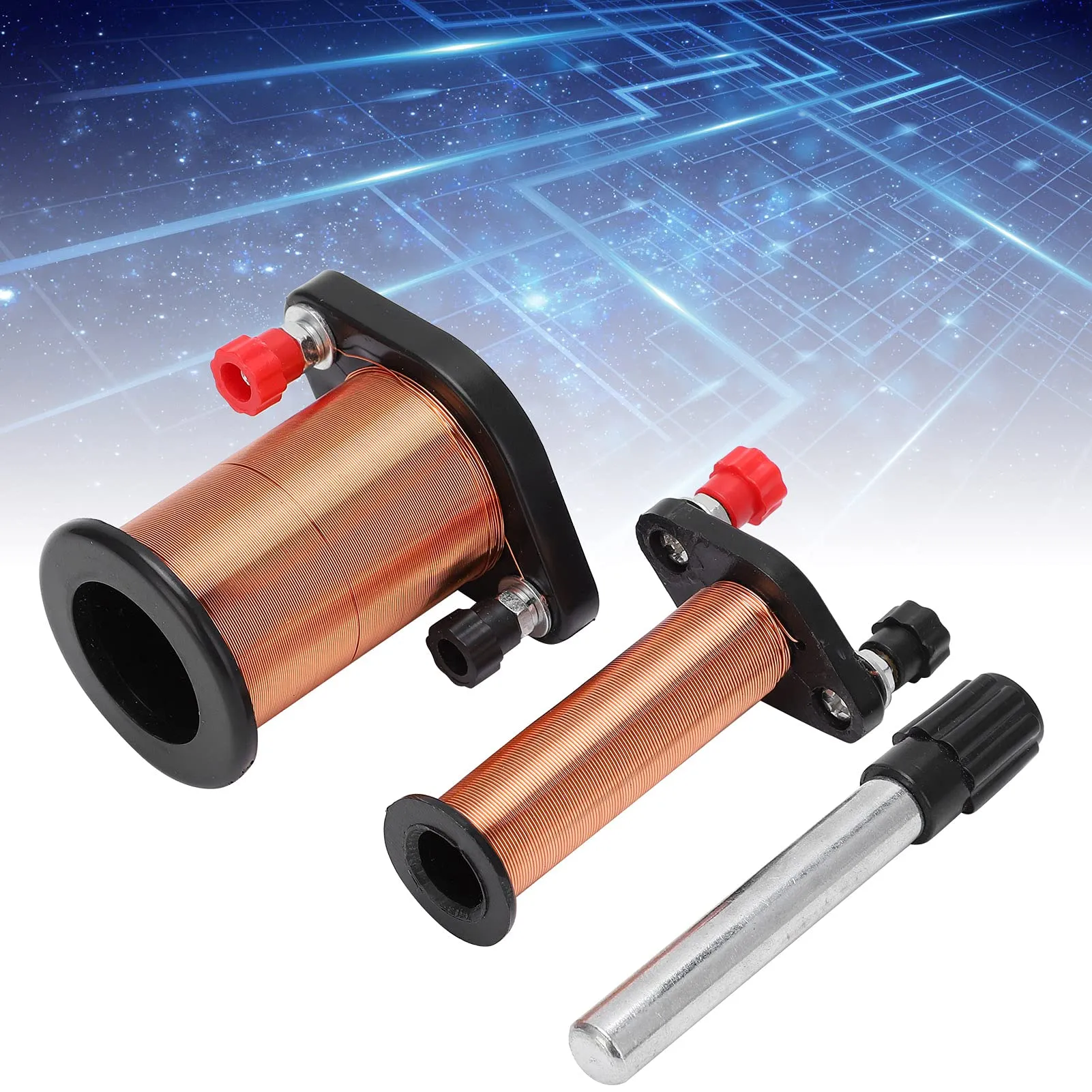

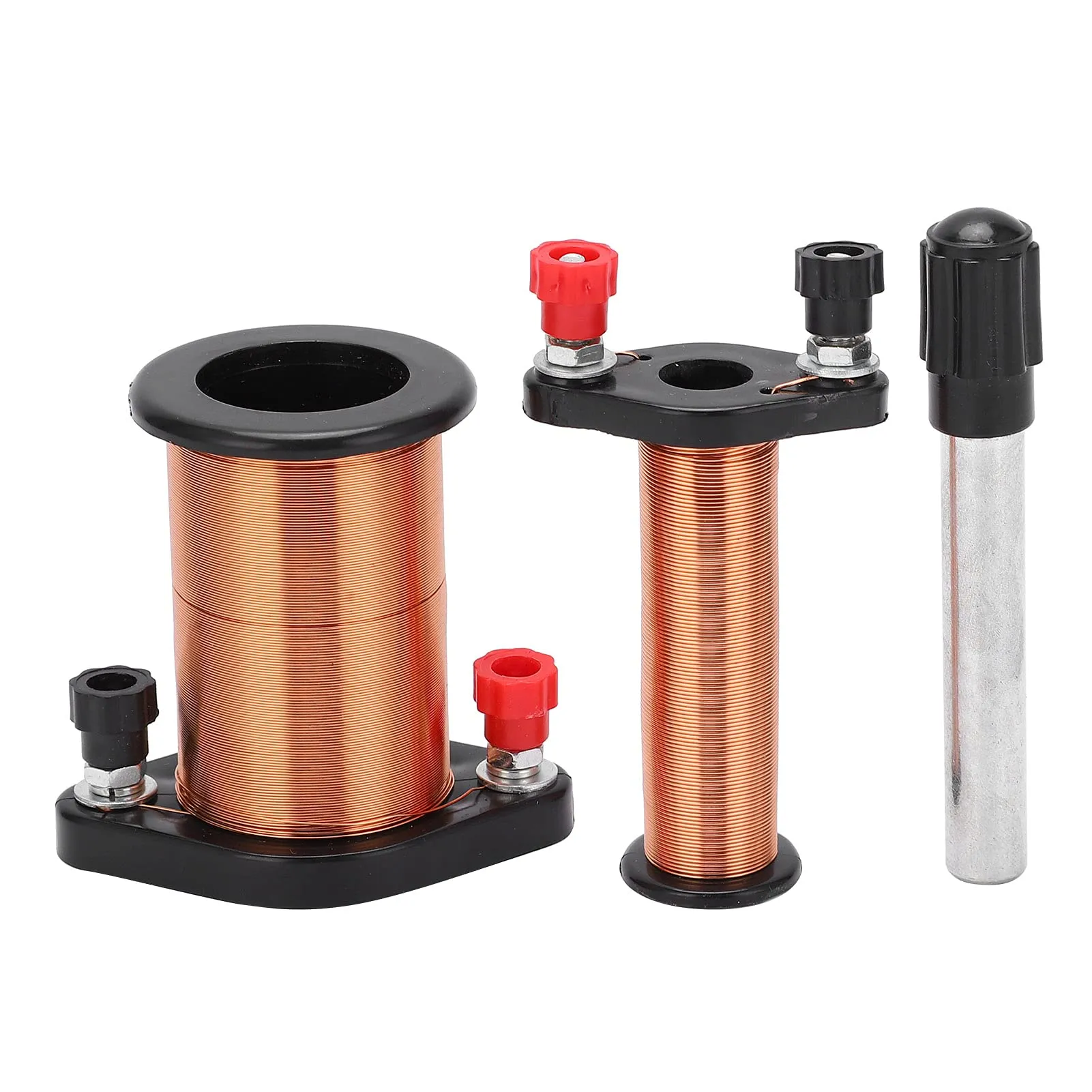

Item Type: Electromagnetic Induction Coil
Material: PVC Brass
Purpose: Middle and high school physics experiment
Applicable Experiments: Study electromagnetic induction, verify Lenz's law, study magnetic induction phenomenon

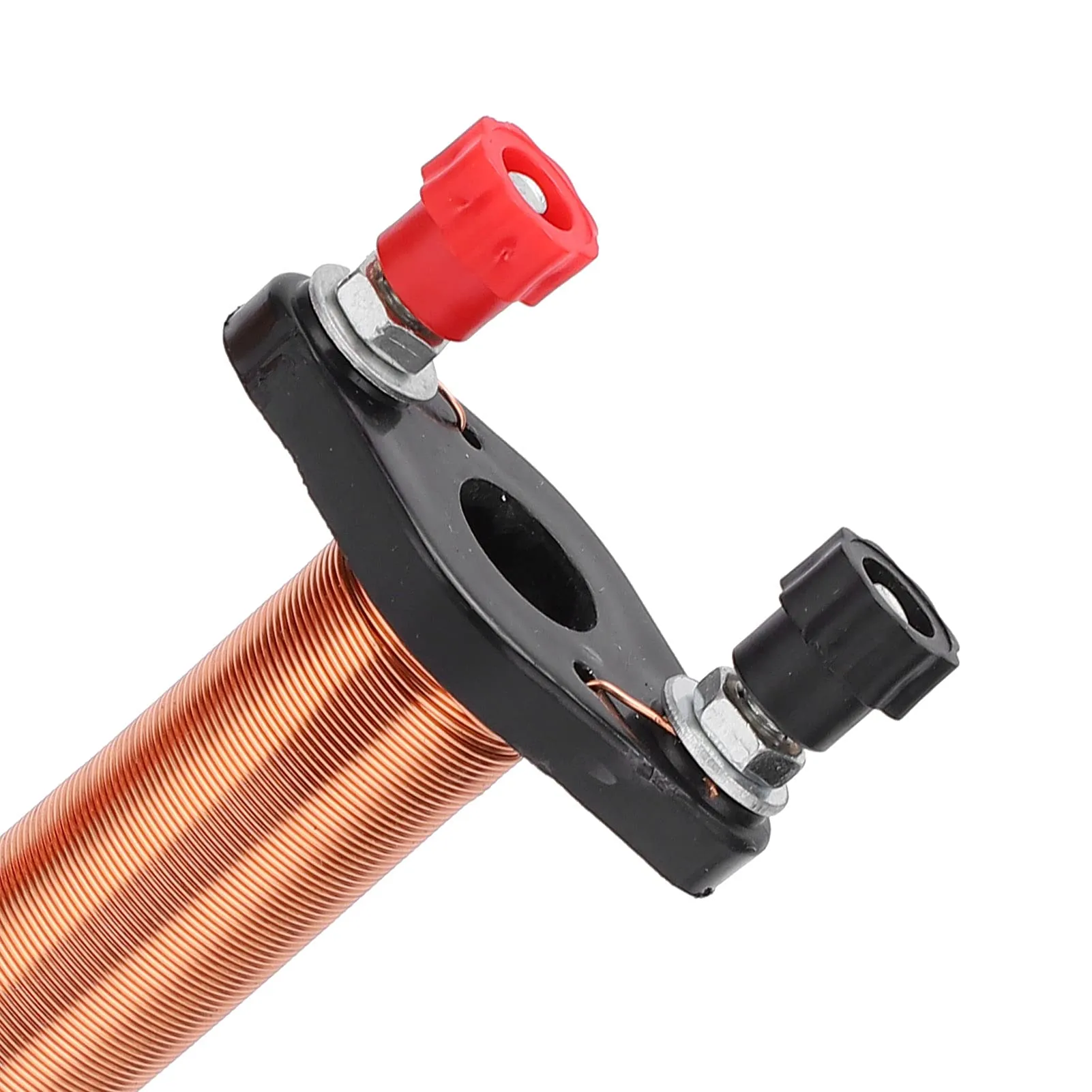

The outer diameter of the hole at the bottom of the original coil is: Approx. 22±1mm / 0.9±0.04in
The inner diameter of the hole at the bottom of the original coil is: Approx. 13±0.5mm / 0.5±0.02in
The height of the round hole at the bottom of the original coil: Approx. 60mm / 2.4in

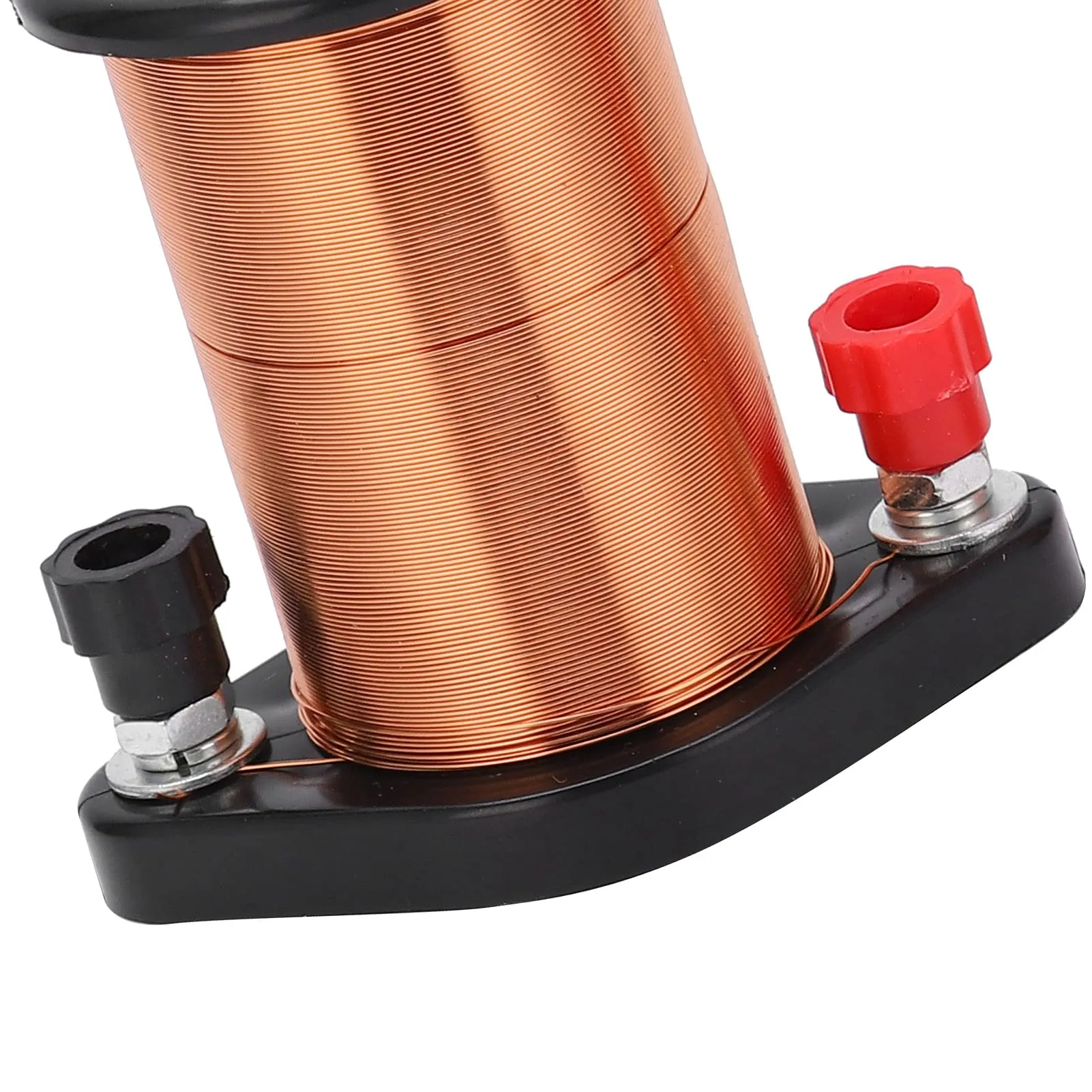

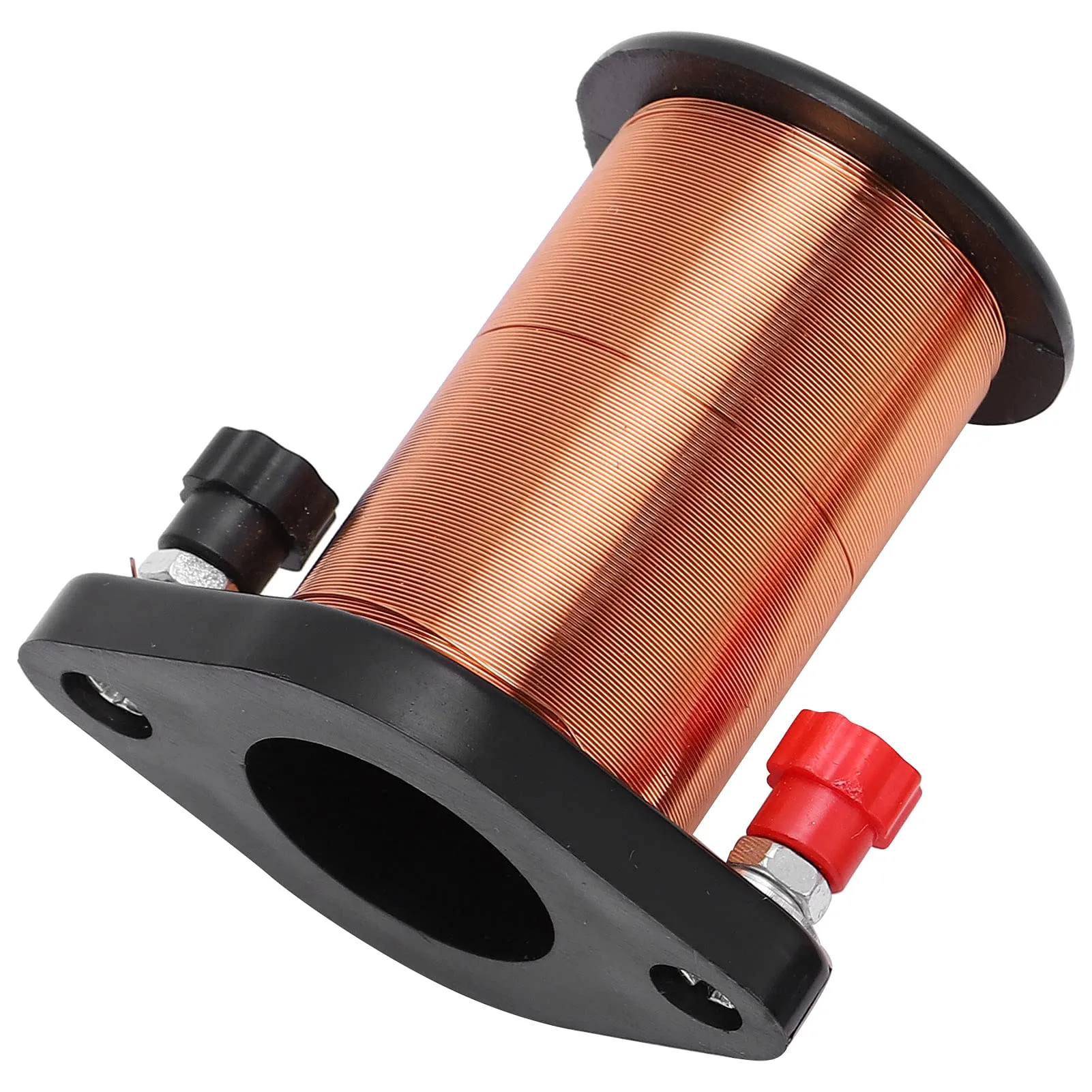

The diameter of the hole at the bottom of the secondary coil is: Approx. 35±1mm / 1.4±0.04in
The inner diameter of the circular hole at the bottom of the secondary coil is: Approx. 49±1mm / 1.9±0.04in
The height of the round hole at the bottom of the secondary coil: Approx. 80mm / 3.1in

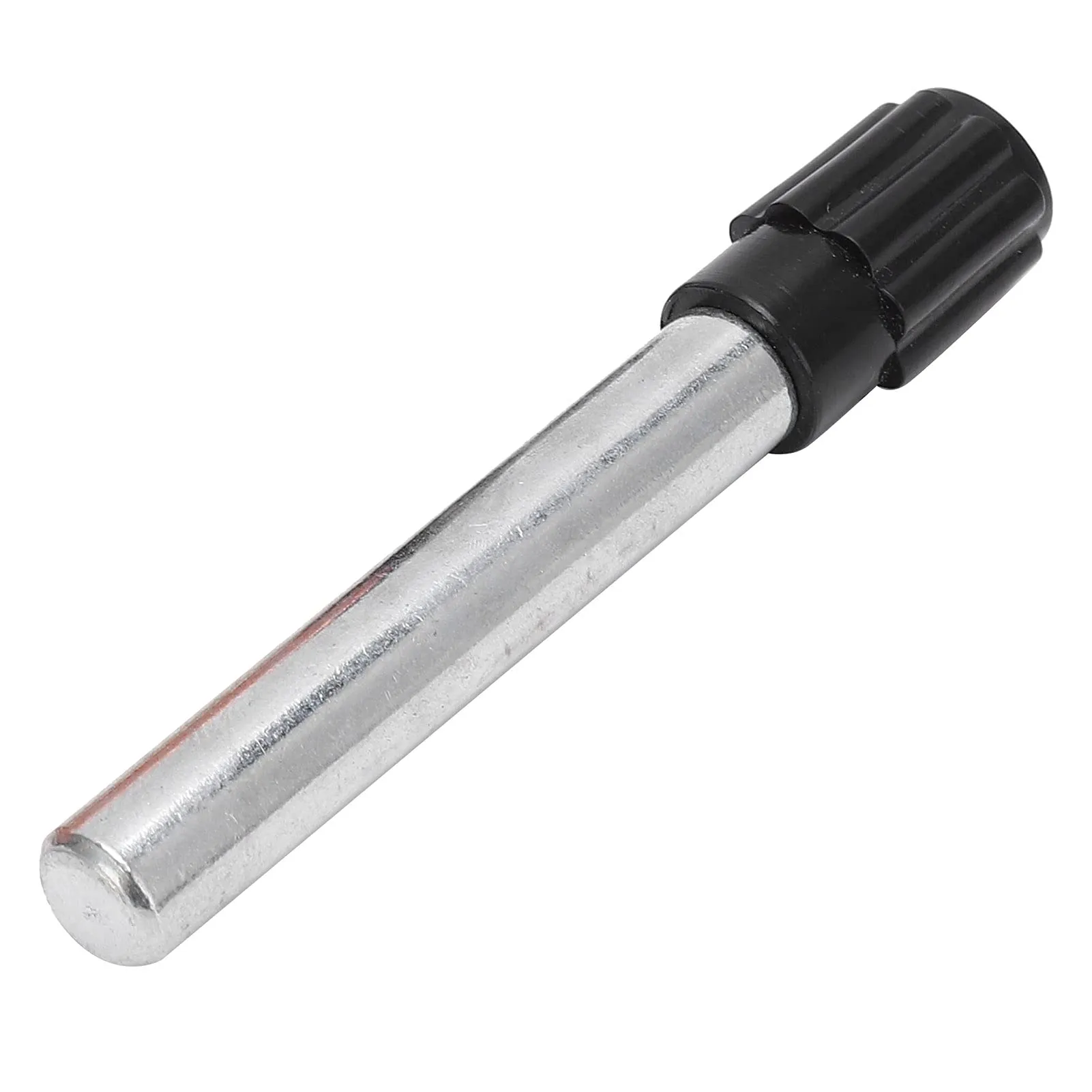

Soft Core Length: Approx. 85mm / 3.3in
How to use:
1. Study the phenomenon of electromagnetic induction: connect the two ends of the secondary coil B to the two terminals of the ammeter with wires;
When using one end of the bar magnet to quickly insert (or withdraw) the secondary coil, the pointers of the galvanometer are all deflected, indicating that there is an induced current in the secondary coil at this time. This phenomenon is called electromagnetic induction. On the contrary, if the magnet is fixed,

EAN: 7295146268947
