Features
- Use this DeWALT air compressor for airbrushing, brad nailing/stapling, HVLP painting, sanding, and more
- Industrial air compressor delivers maximum CFM at 175 psi
- Patented pump design provides for a cooler running pump
- Equipped with tank pressure gauge and on/off switch
- Magnetic starter not required
- Wire form belt guard improves compressor cooling
- Extended tank drain valve, ball valve, and vibration isolators are included for ease of use
- Large-capacity, 80 Gal. ASME air receiver

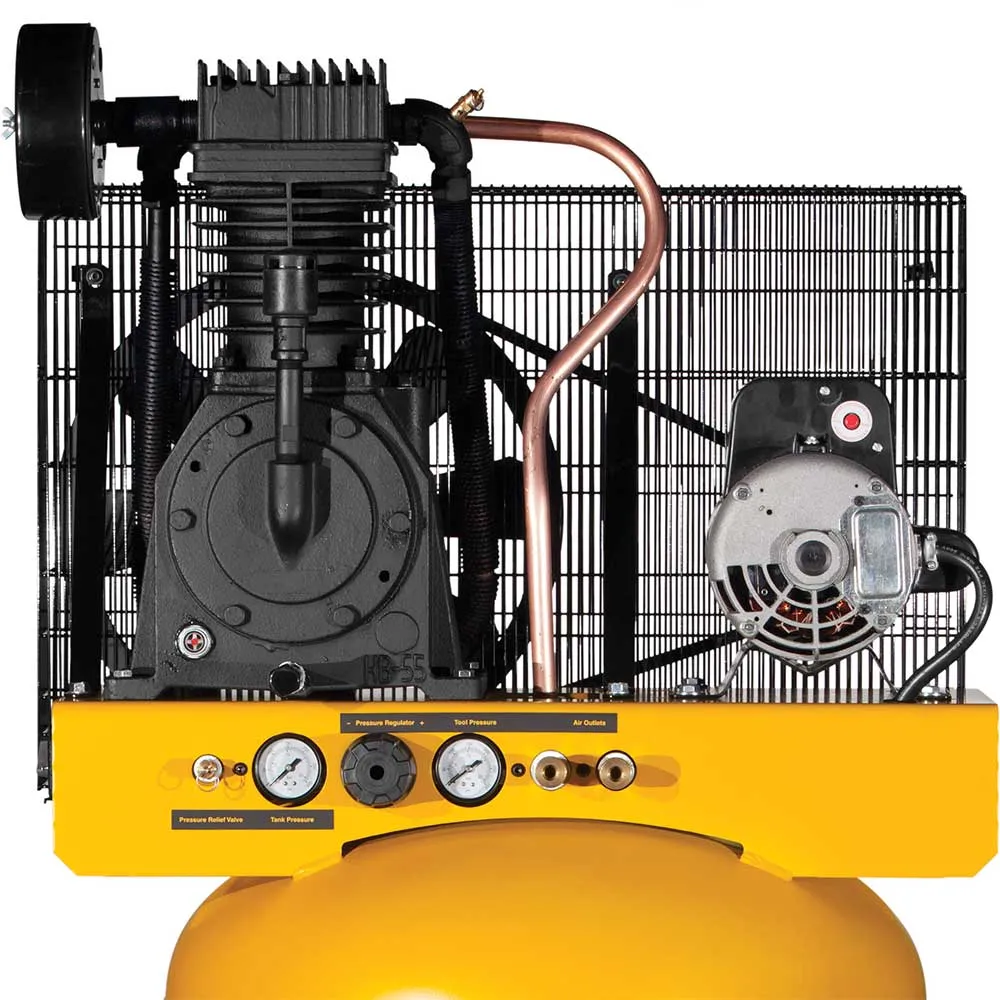

- Integrated control panel for added control and convenience
- Regulator and 2 quick connects are included
- Shipped with 100 percent full synthetic air compressor oil for optimum performance and long life
What's in The Box
- 80 Gal. Stationary Electric Air Compressor
- Owner's Manual
Warranty
- 3-Year Limited Factory Warranty
- 30 Day Money Back Guarantee
Specifications
| SKU | DXCMV5048055.1 |
| Brand | DeWALT |
| Voltage | 230V |
| Max Operation Pressure | 175 PSI |
| Max RPM | 3450 |
| Tank Capacity | 80 gal |
| Tank Fill Time | 6.2 min |
| Drive Type | Belt Drive |
| Compressor Type | Vertical |
| Drain System | 1/4 in. NPT Extended Tank Drain |
| Lubrication Type | Oil |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Pump Material | Cast Iron |
| Pump Oil Capacity | 49 oz |
| Pump Life | 4000 hr |
| Airflow Volume | 17.9 CFM at 100 PSI, 17 CFM at 175 PSI |
| Length | 28 in |
| Width | 30.5 in |
| Height | 74 in |
| Weight | 399 lbs |
